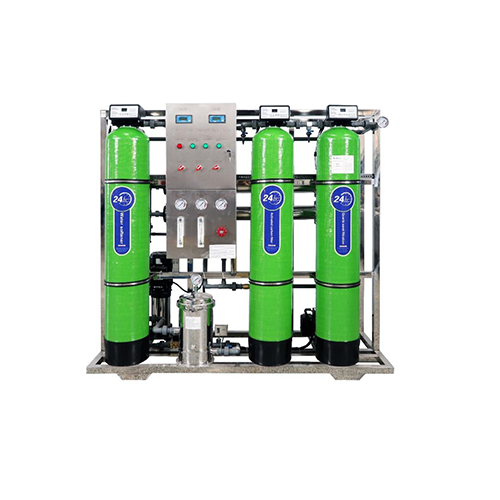

MR3118 Water Treatment Plant Trainer Teaching Equipment Demonstrational Equipment Hydrodynamics Experiment Apparatus 1. Product Introduction 1.1 Product Description Reverse osmosis refers to the use of sufficiently large pressure to separate the solvent (usually water) in the solution through the reverse osmosis membrane (a semi-permeable membrane), and its direction is opposite to the osmotic direction. Using the reverse osmosis process with a pressure greater than the osmotic pressure, the liquid can be separated, purified or concentrated. Using osmosis technology, dissolved salts, colloids, bacteria, viruses, bacterial toxins and most organic matter in water can be effectively removed. 1.2 Product Features 1. Real-time water quality detection function, to understand the water quality of the outlet water at any time. (Applicable to installation of TDS detection equipment, not applicable if not installed) 2. Fully automatic control of the programmable controller, humanized operation display system, only one button or knob can be used to operate the equipment, and it is equipped with tap water stop protection and full water shutdown function. 3. The system automatically flushes when it is turned on, avoiding the trouble of manual flushing, which has effectively extended the service life of the RO reverse osmosis membrane. 4. Refined appearance and strong safety performance. 5. Real-time display of flushing, water production, water fullness and water shortage functions. 6. The equipment has a timed flushing program when it is turned on, with low pressure and high pressure protection functions. 2. Technical specifications 2.1 Technical parameters Power supply parameters: three-core AC220V Working pressure parameters: membrane front pressure 0.8 kg, wastewater pressure 0.5 kg, working pressure cannot exceed 10 kg. Water source pressure requirements: water pressure needs to be between 0.15~0.4MPA. Working conditions: The equipment working environment is 5℃-45℃. (Overcooling and overheating will damage the equipment) 2.2 Dimensions and weight Dimension 1: 1750mm*650mm*1600mm Weight 1: <350kg 3. Product component names and function introduction 3.1 Product main body No. Name 1 Softening filter pump head 2 Softening filter 3 Electrical box 4 High-pressure pump 5 Activated carbon filter pump head 6 Water quality detection collection point 7 Quartz sand filter pump head 8 Raw water pressure gauge 1 9 Pure water pressure gauge 10 Pre-membrane pressure measurement gauge 11 Raw water pressure gauge 2 12 Pure water flow meter 13 Raw water flow meter 14 Raw water flow regulating valve 15 Activated carbon filter 16 Quartz sand filter 17 Precision pressure gauge 18 Precision filter 19 Pressure control switch 20 Water pump 3.2 Product electrical part No. Name 1 Pure water conductivity meter 2 Raw water conductivity meter 3 Power indicator light 4 Raw water pump operation indicator light 5 Backwash operation indicator light 6 Booster pump operation indicator light 7 Power switch 8 Raw water pump switch 9 Booster pump switch 3.3 Product accessories No. Name 1 RO reverse osmosis membrane 2 Float switch 3 Water quality testing toolbox 4 Filter membrane 4. Product Configuration List No. Name Qty 1 Filter pump head 3 2 Quartz sand filter 1 3 Precision pressure gauge 1 4 Precision filter 1 5 Pressure control switch 1 6 Water pump 1 7 Activated carbon filter 1 8 Softening filter 1 9 Raw water pressure gauge 2 10 Pure water pressure gauge 1 11 Pressure gauge before membrane 1 12 Flow meter 2 13 RO reverse osmosis filter tank 2 14 High pressure pump 1 15 Conductivity meter 2 16 Indicator light 4 17 Switch 1 18 Key 1 19 RO reverse osmosis membrane 1 20 Float switch 2 21 Water quality testing tool box 1 22 Filter membrane 5 5. Product teaching experiment list (1) Preparation before installing the trainer equipment (2) Installation process of the trainer equipment (3) Flushing method of the trainer equipment and replacement of filter materials (4) Use of reverse osmosis machine
