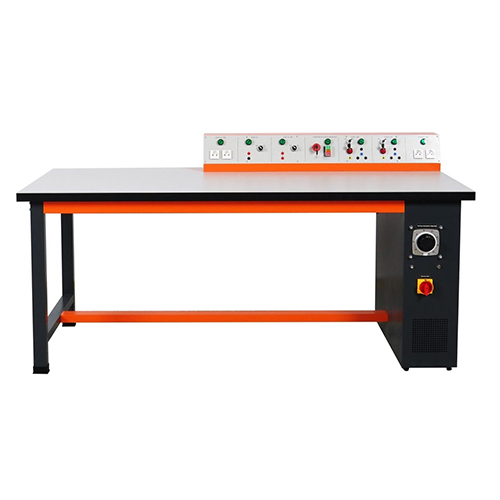

MR563E Versatile Stations for Electrical Manipulations Educational Lab Equipment Demonstrational Equipment Electrical Installation Lab 1. Product Introduction 1.1 Product Description This simple, fully equipped electrical operating station complies with current standards The starting device and connection terminals are installed on the electrician's table. The workbench is equipped with a key-operated "Emergency Stop" button for independent active safety protection, as well as an on/off button with indicator light and "memory" function. 1.2 Product Features The universal training device, through experimental teaching, enables students to master basic knowledge and skills in technology, cultivate students' practical operation ability and application skills, cultivate students' basic ability to analyze and solve problems, and lay a good foundation for professional courses. The electrician's table has more complete safety protection measures and more complete functions. 2 Technical parameters 1. Input power: three-phase five-wire ~ 380V ± 10% 50Hz 2. Recommended temperature: -10℃ ~ +40℃, relative humidity <85% (25℃) 3. Device capacity: <2kVA 4. Weight: 500kg 5. Dimensions: 2000mm × 750mm × 1020mm 3. Components and detailed introduction 3.1 Main part of the product No. Name Qty. 1 Main workbench 1 2 Power output module 7 3 Transformer module 1 3.2 Product module part NO. Name Qty. 1 230VAV socket power supply unit 2 2 240VDC power supply unit 1 3 24VAC power supply unit 1 4 Three-phase power supply unit 1 5 400VAC three-phase power supply unit 1 6 0-430VAC transformer power supply unit 1 3.3 Product accessories NO. Name Qty. 1 4mm safety electrical cable 1m double ended black 5 2 4mm safety electrical cable 1m double ended blue 5 3 4mm safety electrical cable 1m double ended yellow 5 4 4mm safety electrical cable 1m double ended double color 5 5 4mm safety electrical cable 1m double ended red 5 6 4mm safety electrical cable 1m double ended green 5 3.4 Product module introduction 1. Name: AC 230V power socket Parameters: AC230V+N+T/50HZ Purpose: Used to power the AC 230V voltage adapter plug 2. Name: AC 24V power supply unit Parameters: AC24V/5A-50HZ Purpose: Used to power AC 24V power units 3. Name: DC 240V power supply unit Parameters: DC240V/2A Purpose: Used to supply power to DC 240V power units 4.Name: AC 400V three-phase five-wire power supply unit Parameters: AC400V/50HZ Purpose: Used to supply power to AC 400V power units 5.Name: AC 0-430V transformer power supply unit Parameters: AC0-430V/50HZ Purpose: Adjustable output 0-430V AC voltage 4. Product power-on test list (see the test guide for details) (1) 230VAC power supply unit test The unit outputs 230V AC voltage, has no separate control switch, and cannot be adjusted (2) 24VAC power supply unit test The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted (3) 240VDC power supply unit test The unit outputs 240V DC voltage, has a separate control switch, and cannot be adjusted (4) 400VAC power supply unit test The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted (5) 0-430VAC power supply unit test The unit outputs 0-430V AC voltage, has a separate control switch, and can be adjusted
