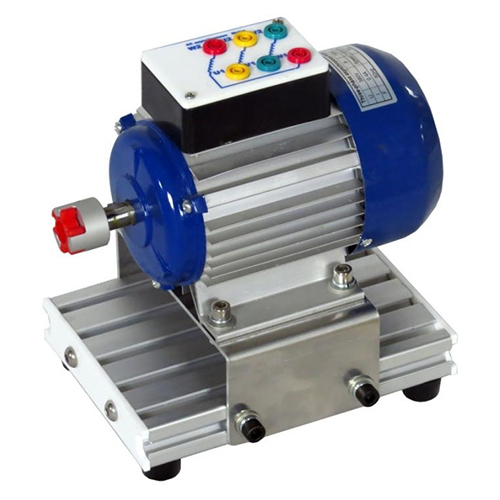

MR394E Three-Phase Squirrel-Cage Asynchronous Motor Educational Equipment for Schools Instructional Package Electrical Installation Lab 1. Product Overview 1.1 Overview The rotor winding is not made of insulated wires, but a three-phase asynchronous motor made by welding or casting aluminum bars or copper bars and short-circuit rings is called a squirrel cage motor. The squirrel-cage motor is a kind of three-phase asynchronous motor. The three-phase asynchronous motor is divided into a squirrel-cage motor and a winding motor. Small three-phase squirrel-cage asynchronous motors have the advantages of small size, light weight and good quality, so they are widely used in agricultural production and enterprises. Suitable for teaching and skills training and assessment of related majors in vocational colleges, vocational schools, secondary vocational schools and technical schools。 1.2 Features (1) The experimental device is fixed on the substrate, and the whole is simple and elegant. (2) Equipped with safety electrical cable, safe and reliable. 2. Performance parameters (1) Input power: three-phase AC380V (2) Dimensions: 250mm×200mm×240mm (3) Weight: 5kg
