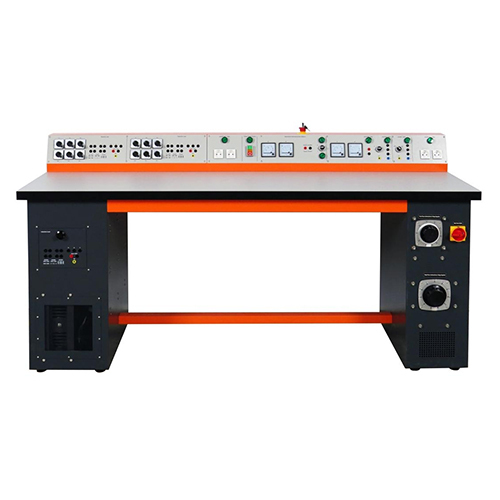

MR562E Stand Alone Electrotechnician Stations Engineering Teaching Equipment Troubleshooting Training System Automatic Trainer 1. Product Introduction 1.1 Product Description The independent electrician station is an environmentally friendly electrical wiring training device designed for teaching, integrating theoretical teaching, practical training and safe operation. It supports practical teaching such as electrical control, lighting, and motor control. Its core features are green materials, economical and durable, safe and convenient. It aims to help students master skills such as circuit connection and troubleshooting through modular design, while reducing teaching costs and maintenance difficulties. 1.2 Product Features Long-life design: corrosion-resistant, anti-aging, long service life, and reduced long-term replacement costs. Energy-saving design: optimize circuit structure, reduce power loss, and support low-voltage safety training Basic circuit training: can be used for most wiring circuit operations such as incandescent lamps, fluorescent lamps, touch switches, voice-controlled switches, and other lighting circuits. A series of wiring training. Electric drag control: supports direct starting, forward and reverse control, star-delta step-down starting and other classic circuit controls of three-phase asynchronous motors. Equipped with resistive load, capacitive load, and inductive load, three wiring methods can be selected according to the diagram, and there are six adjustable knob switches for load regulation. Safe and reliable: The 4mm safety terminal block is used, and the metal contacts are not touchable when not in operation to prevent students from accidentally touching them. The wiring station is made of high-insulation paint, which is not easy to scratch, has a wide operating temperature range, is dustproof and waterproof, and avoids the risk of short circuit caused by liquid splashing and dust intrusion. Emergency cut-off: The emergency stop switch and circuit breaker can effectively cut off all outputs. When the circuit is overloaded or short-circuited, the circuit breaker can effectively cut off the power supply to ensure safety. 2. Technical specifications Technical parameters Input power: Three-phase five-wire AC380V Dimensions: 2000mm*750mm*1100mm Weight: 300kg 3.Product component names and functions NO. Name Function Qty. 1 0-430V transformer knob Adjustable output voltage 0-430V 1 2 0-270V transformer knob Adjustable output voltage 0-270V 1 3 Main power switch Control the power supply of the electrician station 1 4 Inductor input terminal For single-phase and three-phase power connection 6 5 Inductor connection terminal You can choose single-phase or three-phase star-delta connection according to the connection method shown in the figure 8 6 Inductance adjustment knob Adjust the inductance in six positions 1 7 Resistance adjustment knob Adjust the resistance in six positions 6 8 Resistor connection terminal You can choose single-phase or three-phase star-delta connection according to the connection method shown in the figure 8 9 Resistance input terminal For single-phase and three-phase power connection 6 10 Capacitance adjustment knob Adjust the capacitor in six positions 6 11 Capacitor connection terminal You can choose single-phase or three-phase star-delta connection according to the connection method shown in the figure 8 12 Capacitor input terminal For single-phase and three-phase power connection 6 13 French plug Provide 230V AC 2 14 Power indicator Display module power status 8 15 Power switch Control the power on and off of the independent electrician station panel 1 16 Voltmeter Display AC 0-250V and DC 0-250V conversion output terminal voltage 1 17 Ammeter Display AC 0-250V and DC 0-250V conversion output terminal current 1 18 Key emergency stop switch Control the on/off of the independent power station circuit and lock the disconnected state 1 19 AC 0-250V and DC 0-250V single-phase conversion output terminal Output single-phase AC 0-250V or single-phase DC 0-250V 2 20 Knob switch Switch output terminals to output AC or DC 1 21 Voltmeter Display the output voltage of the single-phase AC 0-270V output terminal 1 22 Ammeter Display the output current of single-phase AC 0-270V output terminal 1 23 Single-phase AC 0-270V output terminal Output single-phase 0-270V AC 2 24 Knob switch Switch single-phase or three-phase electrical output mode 1 25 Three-phase AC 0-430V output terminal Output 0-430V three-phase AC 4 26 Knob switch Control the on and off of three-phase AC 400V output terminals 1 27 Three-phase AC 400V output terminal Output 400V three-phase 4 4. Product accessories name and function introduction NO. Name Function Qty. 1 4mm safety electrical cable red Connect 4mm safety terminal 5 2 4mm safety electrical cable yellow Connect 4mm safety terminal 5 3 4mm safety electrical cable blue Connect 4mm safety terminal 5 4 Bridge type 4mm safety terminal Short-circuit 4mm safety terminal 15 5 4mm safety electrical cable double color Connect 4mm safety terminal 5 6 4mm safety electrical cable green
