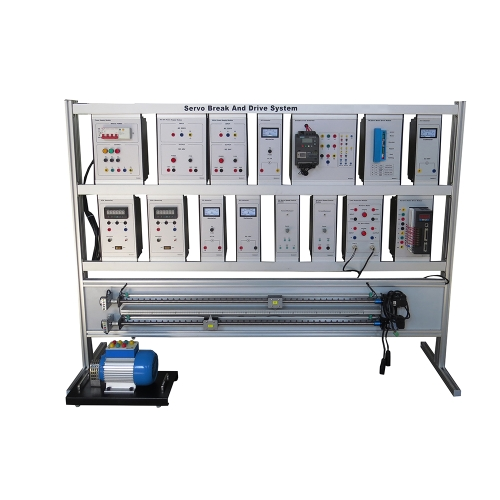

MR344E Servo Break and Drive System Educational Equipment Technical Teaching Equipment Electrical Engineering Lab Equipment 1 Product Overview 1.1 Profile The training device includes DC servo drive, AC servo drive and Siemens Sinamics V20 inverter and encoder. Through experiments, students can familiarize themselves with the characteristics of servo brake and drive system, and master the control principle and control mode. To develop students' technical skills and knowledge suitable for higher vocational education. Higher vocational education, secondary vocational schools and technical schools related to the teaching and skills training assessment. 1.2 Feature (1) The training platform adopts aluminum profile column frame structure, each unit module is rail-mounted, the module is distinct, easy to use and not easy to damage. (2) The equipment is complete, the modules are diverse, and can be used in combination to complete the training content of various courses. (3) The training platform has a good safety protection system. 2 Technical capacity (1) Input power: three phases five wires AC380V±10% 50Hz (2) External dimension: 1800 mm×400 mm×1200 mm (3) Weight: ＜100kg (4) Work condition: environment temperature -10℃～+40℃ relative humidity＜85%(25℃) (5)Whole capacity:< 2.0 kva
