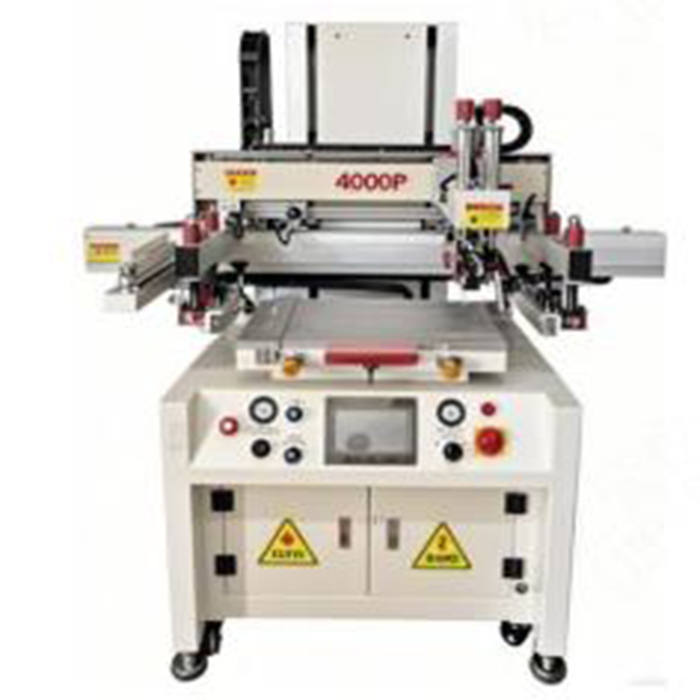

Semi Automatic Screen Printer Educational Equipment Technical Vocational Training Equipment and Simulator Printed Circuit Board Experiment Equipment

Name: Semi Automatic Screen Printer Educational Equipment Technical Vocational Training Equipment and Simulator Printed Circuit Board Experiment Equipment
Brand: Minrry
SKU: MRPCB37
Availability: InStock
Rating: 5 (1 reviews)

No.MRPCB37

MRPCB37 Semi Automatic Screen Printer Educational Equipment Technical Vocational Training Equipment and Simulator Printed Circuit Board Experiment Equipment

Overall length×width×height

1580 mm *1220 mm *1780 mm

Weight

350kg

Power supply/power

220V/1.5KW

GET A QUOTE

Description

MRPCB37 Semi Automatic Screen Printer Educational Equipment Technical Vocational Training Equipment and Simulator Printed Circuit Board Experiment Equipment
Used for precision flat screen printing of various single-sided circuits, liquid green oil, wet film, cold light film (EL) and flexible
circuit boards, PVC, glass, plastic, paper, electronics, etc.
* Maximum printing area: 350mm*500mm
* Platform size: 500mm*850mm
* Printing thickness: ≤80mm
* Platform accuracy: ±0.05mm
* Maximum screen frame: 950mm*1200mm
* Minimum screen frame: 600mm*650mm
* Printing pressure: 4.0 ~ 6.0 Kgf/cm2
* Maximum print times: 800 times/Hr
* Power supply/power: 220V/3KW
* Overall length×width×height: 1580 mm *1220 mm *1780 mm
* Weight: 350kg
* Power supply/power: 220V/1.5KW
