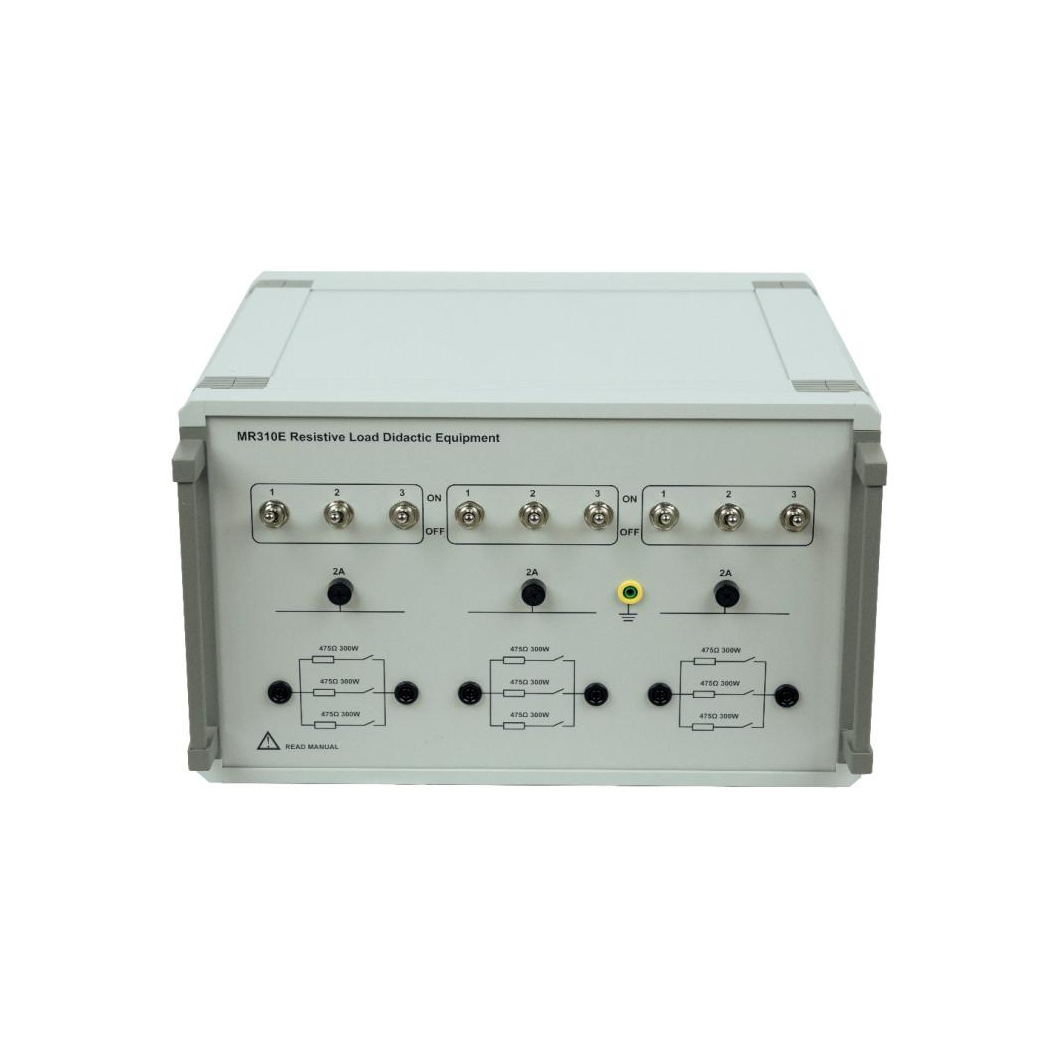

MR310E Resistive Load Didactic Equipment Engineering Teaching Equipment Troubleshooting Training System Automatic Trainer I. Product Overview 1.1 Overview The training device contains several resistive loads (parameter value is 475Ω, 300w), and is equipped with safety terminals and switches for switching, which improves the safety of the equipment. It is suitable for teaching and skills training and assessment of related majors in vocational, vocational and secondary vocational schools. 1.2 Features (1) The experimental device adopts a sheet metal structure, which is simple and elegant as a whole. There are feet installed on the bottom for flexible movement. Easy to use and not easy to damage. (2) The motor is equipped with safety terminals, which is safe and reliable. (3) The training platform has a good safety protection system. II. Performance Parameters Input power supply: three-phase five-wire 380V or single-phase three-wire 220V, 50Hz Size: 430mmx460mmx265mm Capacity: <2KVA Weight: <200Kg Ambient temperature: -10℃～+40℃ Relative humidity: <85% (25℃) III. Experimental List Experiment 1 Experiment on the principles and characteristics of resistive load in delta connection Experiment 2 Principles and Characteristics of Star Connection Resistive Load Experiment Experiment 3 Three-phase resistive load teaching equipment test experiment Experiment 4 Kirchhoff's Law Analysis Experiment
