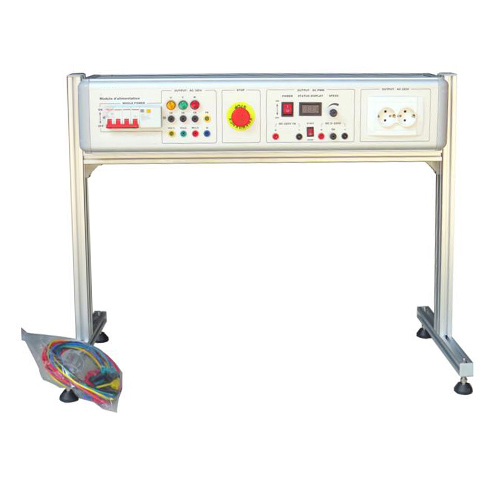

MR313E Power Box Trainer Educational Equipment for Schools Instructional Package Electrical Installation Lab 1. Product Overview 1.1 Overview The training device includes a three-phase AC380V power supply, a single-phase AC220V power socket and a PWM output power supply, which can provide power for related experiments. And equipped with emergency stop button to improve the safety of the equipment. Applicable to the teaching and skills training and assessment of related majors in vocational, vocational, secondary and vocational schools. 1.2 Features (1) The experimental device adopts aluminum profile structure, which is simple and elegant as a whole, and the bottom is equipped with feet, which can be flexibly moved. Easy to use and not easy to damage. (2) The motor is equipped with safety terminals, which is safe and reliable. (3) Equipped with emergency stop button, safe and convenient. 2. Performance parameters (1) Input power: three-phase AC380V ± 10% 50Hz and DC 0-220V (2) Overall dimensions: 1000mm × 300mm × 750mm (3) Machine capacity: <2KVA (4) Weight: <200kg (5) Working conditions: ambient temperature -10 ℃ ～ + 40 ℃ relative humidity ＜ 85% (25 ℃) 3. Product composition 1. 4P circuit breaker 2. Three-phase power supply, safety output terminal, insurance 3. Emergency stop button 4. PWM output power supply unit 5.Socket 4. Can complete the training content Experiment 1 Three-phase power output experiment Experiment 2 PWM power output experiment
