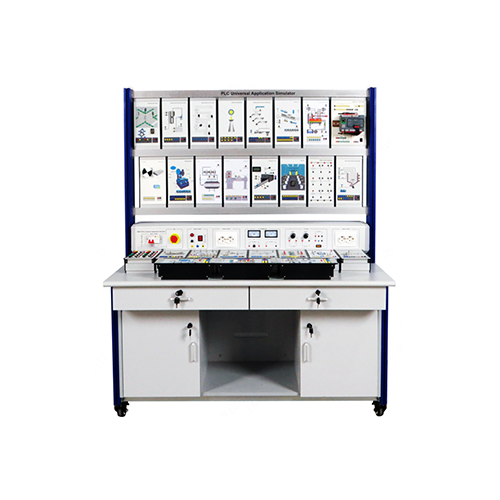

MR406E PLC Universal Application Simulator Educational Equipment Technical Teaching Equipment Electrical Engineering Lab Equipment I.Product Overview 1.1 Overview This training device includes Schneider PLC, training simulation module and other control objects. Through relevant experiments, students can become familiar with the basic use of Schneider PLC, programming methods, use of programming software, etc., and cultivate corresponding knowledge and skills. 1.2 Features (1) The training platform adopts an aluminum profile column frame structure. The measuring instrument and training power supply are installed in an integrated manner. The training circuit and components are combined in a hanging box. The unit combination is flexible, easy to use, and not easy to damage. (2) The experimental circuit and equipment are complete and can be used in combination to complete the training content of various courses. (3) The training platform has a good safety protection system. II.Performance Parameter 2.1 Technical Parameters Power supply parameters: three-phase five-wire 380V ±10% 50Hz 2.2 Dimensions and Weight Dimensions: 1405mm×700mm×1740mm Weight: ＜100kg III.Components List and Detailed Introduction 3.1 Product Main Part Number Name Quantity 1 Module 27 2 Power box 1 3 Desktop 1 4 Cabinet 4 5 Frame 1 6 Universal wheel 4 3.2 Product Electrical Parts Number Name Quantity 1 2P circuit breaker with leakage protection 1 2 Emergency stop button 1 3 AC 220V output 1 4 European socket 2 5 DC current/voltage meter 1 6 DC power module 1 7 European socket 2 3.3 Product module parts Number Name Quantity 1 Stepper motor module 1 2 Machining center module 1 3 Air compressor module 1 4 CCZK lathe control module 1 5 Multiple liquid automatic control system module 1 6 Relay module 1 7 Quick answer module 1 8 Temperature control module 1 9 Traffic light module 1 10 Water tower water level control module 1 11 Motor forward and reverse control module 1 12 Sky Tower Light module 1 13 Automatic delivery loading system 1 14 Material car motor 1 15 Inert gas control system 1 16 Schneider PLC module 1 17 Button module 1 18 Automatic packaging production line module 1 19 Electroplating control system module 1 20 Robot module 1 21 Automatic punching machine control system module 1 22 Automatic washing machine control system 1 23 Automatic punching machine control system module 1 24 Mail automatic sorting system module 1 25 Vending machine module 1 26 Fresh water filtration control module 1 27 Elevator system control module 1 3.4 Product accessories parts Number Name Quantity 1 2mm electrical safety connection cable 100CM red 10 pieces 2 2mm electrical safety connection cable 100CM blue 10 pieces 3 2mm electrical safety connection cable 100CM black 10 pieces 4 2mm electrical safety connection cable 100CM yellow 15 pieces 5 2mm electrical safety connection cable 100CM green 15 pieces 6 4mm electrical safety connection cable 1m double-ended yellow 1 pieces 7 4mm electrical safety connection cable 1m double-ended double-colored 1 piece 8 4mm electrical safety connection cable 1m double-ended blue 1 piece 9 Network cable 2m Cat5E (Category 5E network cable) 1 piece 10 Fuse 30mA 5*20 5 pieces 11 Fuse 5A 5*20 5 pieces IV. Product Configuration List No. Name QYT 1 Stepper motor module 1 Piece 2 Machining center module 1 Piece 3 Air compressor module 1 Piece 4 CCZK lathe control module 1 Piece 5 Multiple liquid automatic control system module 1 Piece 6 Relay module 1 Piece 7 Quick answer module 1 Piece 8 Temperature control module 1 Piece 9 Traffic light module 1 Piece 10 Water tower water level control module 1 Piece 11 Motor forward and reverse control module 1 Piece 12 Sky Tower Light module 1 Piece 13 Automatic delivery and loading system 1 Piece 14 Material car motor 1 Piece 15 Inert gas control system 1 Piece 16 Schneider PLC module 1 Piece 17 Button module 1 Piece 18 Automatic packaging production line module 1 Piece 19 Electroplating control system module 1 Piece 20 Robot module 1 Piece 21 Automatic punching machine control system module 1 Piece 22 Automatic washing machine control system 1 Piece 23 Automatic punching machine control system module 1 Piece 24 Mail automatic sorting system module 1 Piece 25 Vending machine module 1 Piece 26 Fresh water filtration control module 1 Piece 27 Elevator system control module 1 Piece 28 2mm electrical safety connection cable 100CM red 10 Pieces 29 2mm electrical safety connection cable 100CM blue 10 Pieces 30 2mm electrical safety connection cable 100CM black 10 Pieces 31 2mm electrical safety connection cable 100CM yellow 15 Pieces 32 2mm electrical safety connection cable 100CM green 15 Pieces 33 4mm electrical safety connection cable 1m double-ended yellow 1 Piece 34 4mm electrical safety connection cable 1m double-ended two-color 1 Piece 35 4mm electrical safety connection cable 1m double-ended blue 1 Piece 36 Network cable 2m Cat5E (Category 5E network cable) Yellow 1 Piece 37 Fuse 30mA 5*20 5 Pieces 38 Fuse 5A 5*20 5 Pieces V. Experiment List Experiment 1 Stepper motor control experiment Experiment 2 Traffic light ope
