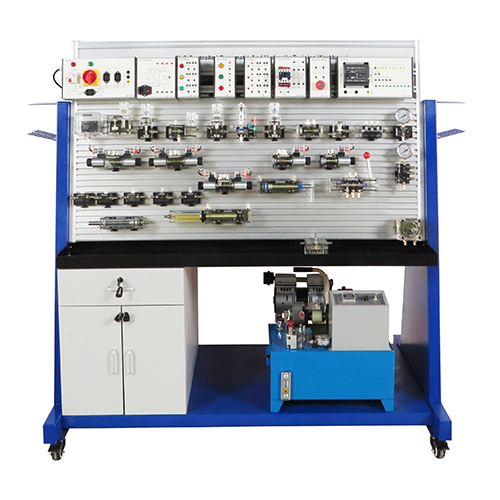

PLC Controlled Pneumatic and Hydraulic Training Workbench Educational Equipment Technical Teaching Equipment Mechatronics Training Equipment

No.MR169M
MR169M PLC Controlled Pneumatic and Hydraulic Training Workbench Educational Equipment Technical Teaching Equipment Mechatronics Training Equipment
Input power
single-phase three-wire AC220V
Dimensions
1650*1050*1730mm
Weight
<345kg
  • PLC Controlled Pneumatic and Hydraulic Training Workbench Educational Equipment Technical Teaching Equipment Mechatronics Training Equipment

Description

MR169M PLC Controlled Pneumatic and Hydraulic Training Workbench Educational Equipment Technical Teaching Equipment Mechatronics Training Equipment
I.Product Overview
1.1 Overview
This system uses transparent hydraulic components, modular aluminum box structure, movable oil circuit joints, and general electrical circuits. Using the tools and materials that come with it and referring to the experimental instructions, it can easily control, experiment, and test various common hydraulic transmissions. It enables students to understand the internal principles, structures, and working processes of oil circuits and hydraulic components, and is an essential instrument for hydraulic transmission teaching.
1.2 Features
(1) The equipment is composed of a high-strength sheet metal frame, which is beautiful and durable. The bottom is equipped with universal wheels for easy movement. It is equipped with a cabinet for storing tools and devices, and the hydraulic station is integrated at the bottom of the equipment. The various hydraulic valve blocks are fixed on a special substrate profile, and the panel grooves are spaced 25mm apart, so that various components can be easily plugged in and out. The upper part is placed on the electric control hanging box, which is compact as a whole.
(2) Each hydraulic component is equipped with an oil circuit transition base plate, which can be easily and freely installed on the panel. The oil circuit overlap adopts an open and closed quick-change joint, which is easy to disassemble and assemble, does not leak oil, reduces losses, and maintains environmental hygiene.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: Input power: single-phase three-wire AC220V
Groove spacing: 25mm
Specifications: Cabinet: 1
Desktop structure: 1
Split groove casters: 4
Safety limit speed range: 1000-1500 rpm
When the hydraulic pump is working, the noise is ≤58dB0 at 1.5m away from the hydraulic table
Illumination: 0…2kW/㎡
Tilt: 0…90°
2.2 Dimensions and Weight
Dimensions:1650*1050*1730mm
Weight:<345kg

III.Components List and Detailed Introduction
3.1 Main Part
Number    Name    Function Introduction
1    Frame    Support
2    Panel    Used for experimental operation
3    Hydraulic station    Oil supply
4    Air pump    Gas supply
5    Cabinet    Place used devices
6    Universal wheel    Easy to move
3.2 Electrical Parts
Number    Name    Function Introduction
1    Power module    Power supply
2    Indicator module    On/off indication
3    Button module    Control components
4    Relay module    Control components
5    AC contactor module    Control components
6    Emergency stop module    Protect/control circuit on/off
7    Inverter module    Convert AC220V to DC24V
8    PLC module    Control components through signals
3.3 Accessories
Number    Name    Function Introduction
1    Air pipe RPU4*2.5 transparent    Ventilate pneumatic parts
2    Pneumatic four-way connector ∮4    Can connect multiple pneumatic parts
3    Pneumatic three-way connector PE4    Can connect multiple pneumatic parts
4    Trachea scissors TK-3    Cut air pipe
5    4mm electrical cable 2 meters double-ended black    Connect circuit
6    4mm electrical cable 2 meters double-ended two-color    Connect circuit
7    2mm electrical cable 100CM red    Connect circuit
8    2mm electrical cable 100CM black    Connect circuit
9    2mm electrical cable 100CM yellow    Connect circuit
10    2mm electrical cable 100CM green    Connect circuit
11    Transparent hydraulic hose (600mm 12 pieces, 1000mm 10 pieces, 1200mm 10 pieces)    Pass oil to hydraulic parts
12    Power cord    Apply electricity
13    Spare oil pipe connector    Install on hydraulic hose

3.4 Product Configuration List
No.    Name    QYT
1    Transparent double-acting cylinder (with stroke collision block)    1
2    Transparent spring return cylinder    1
3    Transparent booster cylinder    1
4    Transparent hydraulic control check valve    1
5    Transparent check valve    1
6    Transparent overflow valve    1
7    Transparent throttle valve    1
8    Transparent speed control valve    1
9    Transparent sequence valve    1
10    Transparent pressure reducing valve    1
11    Transparent 2/2 way solenoid valve DC24V, 2mm terminal    1
12    Transparent 4/2 way solenoid valve DC24V, 2mm terminal    1
13    Transparent 4/3 way solenoid valve (O type) DC24V, 2mm terminal    1
14    Transparent 4/3 way solenoid valve (H type) DC24V, 2mm terminal    1
15    Transparent 4/3 way solenoid valve (M type) DC24V, 2mm terminal    1
16    Transparent four-way valve    1
17    Transparent 5/3 way manual reversing valve    1
18    Transparent pressure relay, 2mm terminal    1
19    Transparent three-way valve    5
20    Transparent radial oil pressure gauge 0-10MPA    1
21    Transparent hydraulic auxiliary oil tank    1
22    Transparent bidirectional hydraulic motor    1
23    Transparent hydraulic station    1
24    Transparent hydraulic hose (600mm 12 pieces, 1000mm 10 pieces, 1200mm 10 pieces)    1
25    Spare oil pipe joint    10
26    Quick change adapter plate    30
27    2mm hydraulic solenoid valve bracket    8
28    2mm terminal insulated red    8
29    2mm terminal insulated black    8
30    Transparent hydraulic gear pump    1
31    Double-acting cylinder MAL20*100-CM    1
32    Single-acting cylinder MSAL20*100-CM    1
33    AC2000 triple fitting    1
34    Pressure reducing valve AR2000    1
35    5/2 way handle type reversing valve 4H210-06    1
36    5/2 way single electric control solenoid valve 4V11006    1
37    5/2 way double solenoid reversing valve 4V120-06B DC24V power supply    1
38    5/3 way solenoid reversing valve (center seal) 4V130C06B DC24V power supply    1
39    Quick exhaust valve QE-02    1
40    Rotary button valve M3PL11006R    1
41    One-way throttle valve KLA-06    1
42    Sequence valve KPSA-G1/8    1
43    Shuttle valve or gate type shuttle valve ST-02    1
44    Air compressor air pump oil-free machine 550W-8L    1
45    Pneumatic straight connector TPC06-02/ female thread direct PCF0602    1
46    Dual air control 5/2 way 4A120-06    1
47    British plug BS546 13A 250V    1
48    Trachea RPU4*2.5 transparent    40m
49    Pneumatic four-way connector ∮4    4
50    Pneumatic three-way connector PE4    6
51    Trachea scissors TK-3    1
52    4mm electrical cable 2 meters double-ended black    4
53    4mm electrical cable 2 meters double-ended two-color    2
54    2mm electrical cable 100CM red    20
55    2mm electrical cable 100CM black    20
56    2mm electrical cable 100CM yellow    20
57    2mm electrical cable 100CM green    20
IV. Experiment List
Experiment 1 5/2 way manual reversing valve experiment (pneumatic)
Experiment 2 Throttle valve experiment (pneumatic)
Experiment 3 Quick exhaust valve experiment (pneumatic)
Experiment 4 5/2 way single-electric solenoid valve experiment (pneumatic)
Experiment 5 5/2 way double-electric solenoid valve experiment (pneumatic)
Experiment 6 PLC control experiment (pneumatic)
Experiment 7 Pressure reducing valve experiment (pneumatic)
Experiment 8 One-way pressure sequence valve experiment (pneumatic)
Experiment 9 Booster cylinder test experiment (hydraulic)
Experiment 10 5/3 way manual reversing valve experiment (hydraulic)
Experiment 11 Pressure reducing valve test experiment (hydraulic)
Experiment 12 Throttle valve test experiment (hydraulic)
Experiment 13 Pressure relay test experiment (hydraulic)
Experiment 14 4/3 way solenoid reversing valve experiment (hydraulic)
Experiment 15 Overflow valve test experiment (hydraulic)
Experiment 16 Sequence valve test experiment (hydraulic)
