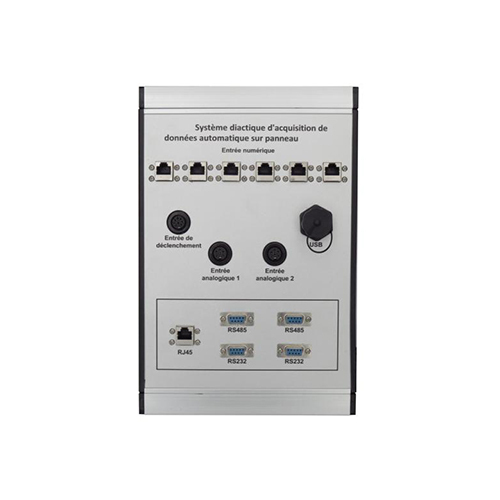

MRVDAS-F On-Panel Automatic Data Acquisition System Vocational Training Equipment Demonstrator Electrical Automatic Trainer I. Product overview The hardware connector on the panel of this training device. It is functionally identical to MRVDAS-B, except that it can be used in panel-based. The MRVDAS-F is best suited for use with products with table-mounted VDAS compatible control units. To cultivate students' corresponding knowledge and skills, it is suitable for the teaching and skills training assessment of related majors in higher vocational schools, vocational schools, secondary vocational schools and technical schools. II. Performance parameters (1) Input power supply: DC24V±5% (2) Weight: less than 10kg (3) Working conditions: ambient temperature 10 ℃ ~ 30 ℃ relative humidity <75% (25 ℃) (4) Size: about 210mm*297mm*130mm III. Experiment list Experiment 1 Software connection use Experiment 2 Software monitoring and use (MR-H83 as an example) Experiment 3 Software curve graph use (MR-H83 as an example) Experiment 4 Software data recording (MR-H83 as an example) Experiment 5 Software data export (MR-H83 as an example) Experiment 6 Digital input usage Experiment 7 External analog input Experiment 8 Control Communication Unit Use
