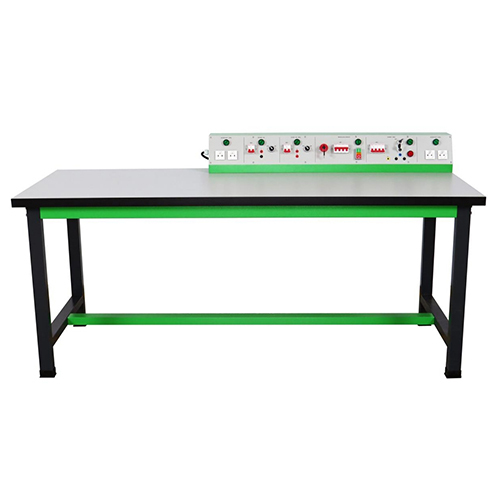

MR564E Multipurpose Stations Educational Equipment for schools Technical Vocational Training Equipment and Simulator Automatic Trainer 1. Product Introduction 1.1 Product Description Electrical processing station, simple, fully equipped, in line with current standards, high quality, safe and reliable. The workbench is equipped with equipment start switch, connection terminals and various power supply units. Equipped with a key-operated "emergency stop" button for independent control to ensure safety, and a start/stop button with indicator light and "memory" function. 1.2 Product Features The general training device, through experimental teaching, enables students to master basic technical knowledge and skills, cultivate students' practical operation ability and application skills, cultivate students' basic ability to analyze and solve problems, and lay a good foundation for professional courses. The electrician's table has more complete safety protection measures and more complete functions. 2. Technical specifications 2.1 Technical parameters Power supply parameters: 400VAC/24VAC/240VDC/230VAC Light color: green/red Variable three-phase unit: no Fixed DC: yes Fixed AC: yes 2.2 Weight and dimensions Dimensions: 2000mm×750mm×1020mm Weight: <300kg 3. Product component names and function introduction 3.1 Product main part NO. Name Qty. 1 Main workbench 1 2 Power supply unit module 6 3.2 Product module part NO. Name Qty. 1 230VAV socket power supply unit 2 2 240VDC power supply unit 1 3 24VAC power supply unit 1 4 Three-phase power supply unit 1 5 400VAC three-phase power supply unit 1 3.3 Product accessorie NO. Name Qty. 1 4mm safety electrical cable 1m double ended black 5 2 4mm safety electrical cable 1m double ended blue 5 3 4mm safety electrical cable 1m double ended yellow 5 4 4mm safety electrical cable 1 meter double ends double colors 5 5 4mm safety electrical cable 1m double ended red 5 6 4mm safety electrical cable 1m double ended green 5 3.4 Product module introduction 1. Name: AC 230V power socket Parameters: AC230V+N+T/50HZ Purpose: Used to power AC 230V voltage adapter plug 2. Name: AC 24V power supply unit Parameters: AC24V/5A-50HZ Purpose: Used to power AC 24V power units 3. Name: DC 240V power supply unit Parameters: DC240V/2A Purpose: Used to supply power to DC 240V power units 4. Name: AC 400V three-phase five-wire power supply unit Parameters: AC400V/50HZ Purpose: Used to supply power to AC 400V power units 4. Product power-on test list (see the test guide for details) (1) 230VAC power supply unit test The unit outputs 230V AC voltage, has no separate control switch, and cannot be adjusted (2) 24VAC power supply unit test The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted (3) 240VDC power supply unit test The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted (4) 400VAC power supply unit test The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted
