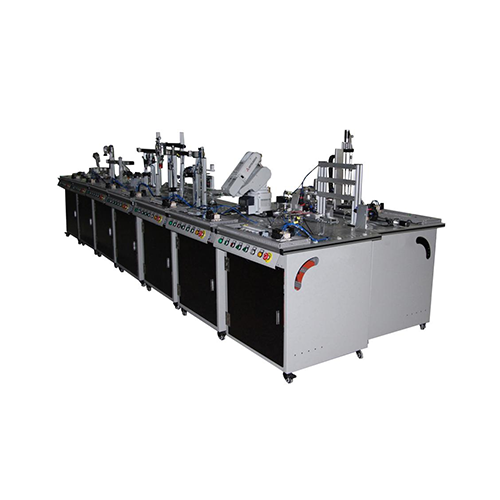

MR146M Modular Product System School Laboratory Equipment Educational Teaching Mechatronics Trainer I. Overview Modular product system include distribution station, testing station, processing station, handling station, buffering station, robot station(6 DOF robot), pressure station, AS/RS station, sorting station. Each station is installed in aluminum grooves, it is easy for each station to combine to an automotive product line. The modules in each station use modular structure, it is easy for constructing, disassemble, and maintain. II. Technical Parameter 1, Control cabinet main circuit power supply:single phase AC220V ± 10% 50Hz 2. Control cabinet control loop power supply:DC24V 3. Temperature:-10 ℃ ~ 40 ℃, 4. Environmental humidity:≤ 90% (25 ℃) 5. Air supply pressure:0.5 ~ 0.6Mpa 6. Machine capacity:≤ 1KVA 7. Dimensions:750mm×750mm×1000mm
