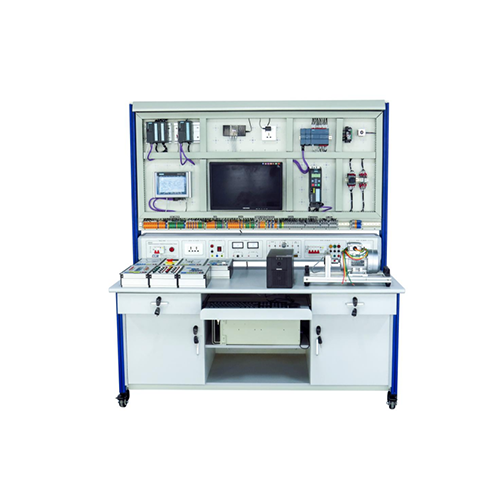

MR003E Industrial Automation Network Communication Trainer Teaching Equipment Classroom Training Set Smart Grid Training Equipment 1 Product Overview 1.1 Overview Industrial automation network communication integrated training equipment is based on Siemens fully integrated automation training platform, which is suitable for universities, colleges, technical schools, and engineer training centers. It can not only conduct automated network education and training, but also has a slave system that can set up network training rooms and can be regarded as a teacher's machine. The main body of the industrial automation network communication integration training equipment is the automation communication network, Siemens two S7-300PLC, Siemens S7-1200PLC, AC contactor, Siemens touch screen, stepping motor, Siemens G120 inverter, three-phase motor, industrial personal computer, Switches, UPS power supply, water tower control box, traffic light box, button light box, steel rolling equipment box, processing center box, elevator control box and other configurations. Realize the sharing of teaching resources and optimize the management of experimental teaching. Industrial Automation Network Communication Integrated Training System Based on Siemens' three-tier network structure: The first layer: the main equipment is industrial PC. Enterprise management, two Siemens S7-300 PLCs, The second layer: process monitoring layer, the main equipment is two Siemens S7-300 PLC, to communicate with the first layer through Profinet. The third layer: scene control layer. The main equipment is Siemens S7-1200PLC, Siemens inverter, AC contactor, DC contactor, button indicator light module, etc. It communicates with the second layer and the third layer through PROFIBUS or Profinet protocol. 1.2 Features (1) The training platform adopts an aluminum profile column frame structure, and the bottom of the training platform is equipped with universal wheels, which can be moved flexibly. Various modules are placed on the panel, which is easy to use and not easy to damage. (2) There are a complete range of communication modules, which can be combined and used in various ways. (3) The overall structure adopts an open and disassembled type, which can easily replace the modules. The content of the modules is determined according to the principle of having productive functions and integrated learning functions, so that the required modules can be conveniently selected during teaching or competition. (4) The training and assessment device is a low-voltage component, which is safe to use. 2 Performance Parameters (1) Input power: three-phase five-wire system AC220V±10% 50Hz (2) Dimensions: 1710 (length) x890 (width) x1980 (height) mm (3) Machine capacity: <1.5 KVA (4) Weight: <300kg (5) Working conditions: Ambient temperature -10°C ~ +40°C Relative humidity <85% (25°C) (6) Safety protection: with leakage voltage and leakage current protection devices, the safety meets national standards 3 Product Composition Main part: No. Component name 1 panel module 2 Terminal block 3 Encoder and three-phase motor 4 UPS power supply 5 Cabinet 6 Industrial PC 7 hanging box 8 power box Power box No. Name 1 2P circuit breaker with leakage protection, indicator light 2 Six hole socket 3 AC110V single-phase AC output unit, indicator light, overload insurance 4 DC Ammeter, DC Voltmeter 5 4-20mA analog output, 0-10V analog output and DC24V power output 6 AC220V three-phase AC output unit, three-phase indicator light, three-phase overload insurance 7 Six hole socket Panel Module No Name 1 PLC module (CPU 314C-2PN/DP) 2 PLC module（CPU 312C） 3 switch 4 PLC module（CPU 1214C+CM1242-5 PROF1BUS DP SLAVE+CM1241 RS422/485） 5 Stepper motor + stepper motor driver 6 Siemens touch screen 7 monitor 8 Siemens G120 inverter module 9 AC110V AC contactor and DC24V intermediate relay 10 PLC module (CPU 314C-2PN/DP) transfer terminal 11 PLC module (CPU 312C) transfer terminal 12 PLC module (CPU 1214C) transfer terminal 13 Stepper motor unit transfer terminal 14 Touch screen power transfer terminal 15 Switch power transfer terminal 16 Siemens G120 inverter transfer terminal 17 AC110V AC contactor 18 DC24V intermediate relay transfer terminal Component： No Name Component 1 Water tower control hanging box Component 2 Traffic light hanging box Component 3 Button light hanging box Component 4 Rolling device hanging box Component 5 Machining center hanging box Component 6 Elevator Control Hanging Box Component 7 Voltmeter and emergency stop button hanging box Component 8 Three-phase motor with encoder Component 9 UPS power supply Component 10 Industrial PC Component 11 MPI download line Component 12 toolbox Component 13 multimeter Component 14 Accessories 4 The Training Content Can Be Completed (1) Siemens 300PLC and PC communication programming training (2) Siemens 300PLC MPI communication training (3) Siemens 300PLC and 1214CPLC Ethernet communication training (4) 300PLC control stepper motor training (5) Siemens touch screen configuration software programming training (6) Design the experimental project training of the comp
