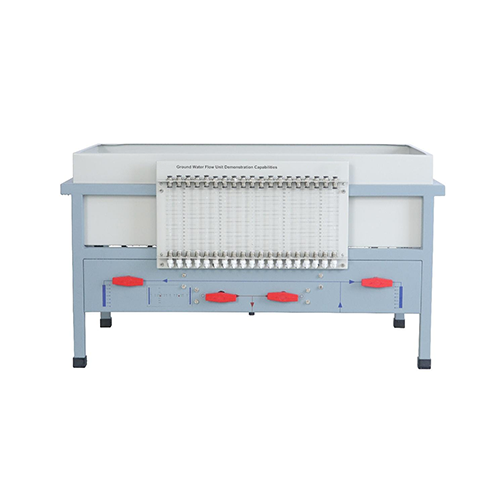

MR3119 Ground Water Flow Unit Demonstration Capabilities Technical Training Equipment Teaching Model Fluid Mechanics Experiment Equipment 1. Equipment introduction 1.1 Overview Osmosis is a process that occurs every moment in nature, and the types of osmosis are extremely rich. In engineering construction, infiltration sometimes facilitates the project, but sometimes it causes construction difficulties. For example, in the mining industry, accidental disasters caused by infiltration are often encountered. Therefore, people need to better understand the basic laws of infiltration so that infiltration can better provide people with controllable help. Understanding the basic laws of infiltration requires professional experimental demonstration equipment to help users understand the various forms of infiltration, and simulate the advantages and disadvantages of infiltration in engineering through experimental demonstration methods. The MR3119 groundwater flow device demonstration capability is a device used to study the permeability of various types of different engineering conditions. The device provides a variety of experimental module components, allowing users to freely design experiments and explore the permeability properties under different working conditions. 1.2 Features (1) The structure of the experimental device uses stronger and more corrosion-resistant materials to ensure that the device is sturdy and durable. (2) The experimental equipment adopts a modular design. The advantages of this design can help users understand the experimental principles and methods more intuitively. (3) The experimental equipment provides a variety of experimental modules and can provide a richer variety of experiments. 2. Technical parameters Size: 1090mm*670mm*670mm Weight: 72kg Working conditions: ambient temperature -10℃～+40℃; relative humidity < 85% (25℃) 3. Components list and detailed introduction 3.1 Main part No. Name 1 Experimental containers and racks 2 Multi-tube liquid column meter 3 Ball valve 4 Sewer pipe interface 5 Water pipe interface 3.2 Equipment configuration list No. Name Qty Component 1 Multi-tube liquid column meter 1 Component 2 Small circular transparent experimental module 1 Component 3 Large circular transparent experimental module 1 Component 4 Square black experimental module 1 Component 5 Load-bearing experimental module 1 Component 6 Measuring cup 1 Component 7 Sand shovel 1 Component 8 Stopwatch 1 3.3 Accessories No. Name Qty 1 Large circular transparent experimental module 1 2 Small circular transparent experimental module 1 3 Square black experimental module 1 4 Load-bearing experimental module 1 5 Sand shovel 1 6 Measuring cup 1 7 Stopwatch 1 8 Pipe clamp 2 4. Experiment list Experiment 1 Hydraulic gradient experiment to measure groundwater flow Experiment 2: Measuring the drainage flow rate of a single well in an unconfined aquifer Experiment 3 Measurement of drainage flow rate from double wells in unconfined aquifer Experiment 4 simulates the use of wells to conduct drainage experiments on construction sites Experiment 5: Measurement of single well data in confined aquifers Experiment 6 simulates the use of wells to conduct drainage experiments on lake conditions
