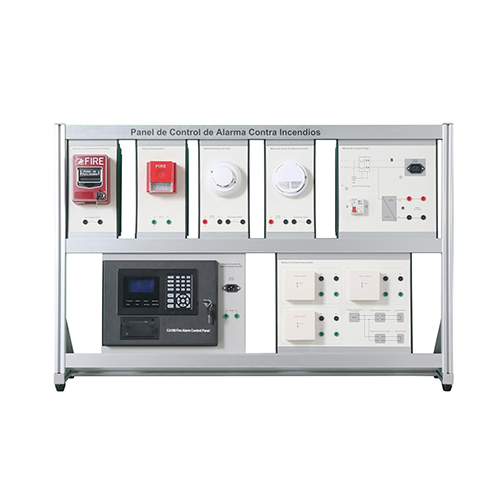

MR1003B Fire System Alarm Control Panel Educative Equipment Technical Training Equipment Building Automation Trainer 1. Equipment Introduction 1.1 Overview This system can simulate the fire alarm system process, so that students can have a preliminary and intuitive understanding of the fire alarm system, familiarize themselves with the composition, connection, and operation principle of the fire alarm system, and cultivate students' corresponding knowledge and skills. 1.2 Features (1) The training platform adopts an aluminum profile frame structure, the unit is flexible and easy to use, and not easy to damage. (2) The experimental circuit and device configuration are complete and can be used in combination to complete the training content of various subjects. (3) The training platform has a good safety guarantee system. 2. Technical Parameters Input power: single-phase AC 220V (-15%~+10%), 50Hz Dimensions:1190mm*630mm*960mm Weight:71KG Working conditions: Temperature: -10℃~+50℃; Relative humidity: ≤95%, no condensation 3. Component List And Detailed Introduction 3.1 Main Part No. Name 1 Addressable fire alarm control panel 2 Wired gas detection alarm module 3 Smoke sensor module 4 Power module 5 Sound and light alarm module 6 Manual emergency starter module 7 Input module 8 Frame 3.2 Accessories No. Name Qty 1 Encoder 1 2 Battery 4 3 2A fuse 2 4 0.2A fuse 2 5 Addressable Fire Alarm Control Panel Instructions 1 6 4mm safety electrical cable red Several 7 4mm safety electrical cable black Several 8 4mm safety electrical cable green Several 9 Pin-shaped power cord 1 10 Printing paper 1 4. Experiment list Experiment 1 Fire system alarm control panel address coding Experiment 2 Alarm parameter printing operation Experiment 3 Wired gas detection alarm module test experiment Experiment 4 Smoke sensor module test experiment Experiment 5 Manual emergency starter module test experiment
