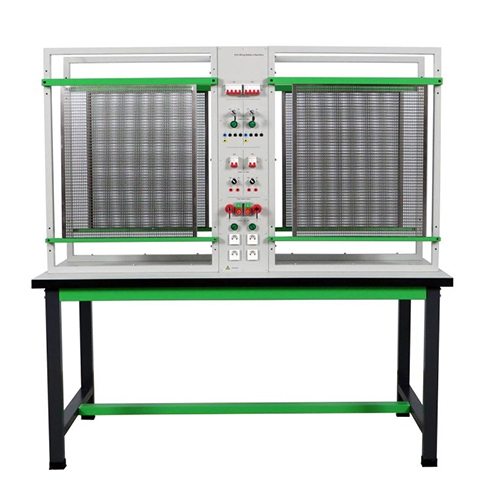

MR560E ECO Wiring Station Educational Equipment Demonstrational Equipment Electrical Installation Lab 1. Product Introduction 1.1 Product Description The ECO wiring station is an environmentally friendly electrical wiring training device designed for teaching, mainly used for practical teaching of electrical control, lighting and other courses. Its core features are green materials, economical and durable, safe and convenient. It aims to help students master skills such as circuit connection and troubleshooting through modular design, while reducing teaching costs and maintenance difficulties. 1.2 Product Features Long-life design: corrosion-resistant, anti-aging, long service life, and reduced long-term replacement costs. Energy-saving design: optimize circuit structure, reduce power loss, and support low-voltage safety training Multi-functional training support: can be used for most wiring circuit operations such as incandescent lamps, fluorescent lamps, touch switches, voice-controlled switches and other lighting circuits, and a series of wiring training. Safe and reliable: The 4mm safety terminal block used has metal contacts that cannot be touched in the non-operating state to prevent students from accidentally touching it. The wiring station is made of high-insulation paint, which is not easy to scratch, has a wide operating temperature range, is dustproof and waterproof, and avoids the risk of short circuits caused by liquid splashing and dust intrusion. Emergency cut-off: The emergency stop switch and circuit breaker can effectively cut off all outputs. When the circuit is overloaded or short-circuited, the circuit breaker can effectively cut off the power supply to ensure safety. 2. Technical Specifications Technical Parameters Input Power: Three-phase five-wire AC380V Dimensions: 4 1000mm*750mm frames 1 1800mm*750mm high temperature laminated coating tray Weight: 200kg 3. Product component names and functions No. Name Function Qty. 1 Circuit breaker Controls the on/off of the circuit and overload and short circuit protection 4 2 Key knob switch Controls the on/off of the circuit and locks the on/off status of the circuit 2 3 Power output indicator light Displays the on/off status of the circuit 4 4 4mm safety electrical cable terminal Connects U, V, W three-phase power, neutral wire, ground wire and 24V AC 14 5 Knob switch Controls the on/off of the circuit 2 6 Start/stop button Controls the on/off of the entire circuit 2 7 Key emergency stop switch Controls the on/off of the circuit and locks the circuit disconnection status 2 8 French plug Provides 220V AC 4 9 Grid Framework Provide practical training wiring platform 4 4. Product accessories name and function introduction No. Name Function Qty. 1 Plastic mounting clips Fixed electrical parts 600 2 Flat head self tapping Locking plastic mounting clips 600 3 4mm safety electrical cable green Connect to 4mm safety terminal 5 4 4mm safety electrical cable black Connect to 4mm safety terminal 5 5 4mm safety electrical cable yellow Connect to 4mm safety terminal 5 6 4mm safety electrical cable double color Connect to 4mm safety terminal 5 7 4mm safety electrical cable red Connect to 4mm safety terminal 5 8 4mm safety electrical cable blue Connect to 4mm safety terminal 5 5. Experimental list 1. Basic use of equipment.
