Name: Basic Electro-Pneumatics Kit Didactic Equipment Technical Training Equipment Mechatronics Training Equipment
Brand: Minrry
SKU: MR126M
Availability: InStock
Rating: 5 (1 reviews)

Description

MR126M Basic Electro-Pneumatics Kit Didactic Equipment Technical Training Equipment Mechatronics Training Equipment
I.Product Overview
1.1 Product Description

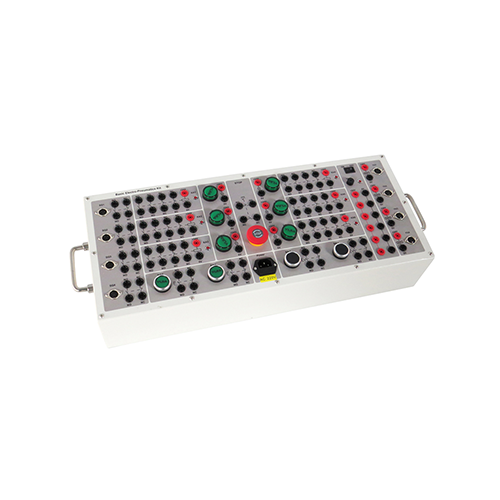

The equipment consists of an intermediate relay, a 24V indicator light load, an emergency stop switch, a 24V power output, an electromagnetic coil, a travel switch coil, a self-locking and self-reset button, etc.
It is suitable for experiments with other equipment and can help experimenters understand electrical equipment.
1.2 Product Features
1. High reliability and durability.
2. Avoid overload use.
3. Multiple configurations to adapt to different circuit requirements.
4. High isolation to ensure circuit safety.
5. Fast response to reduce control delay.
6. Easy to operate and quick response.
7. Stable structure, suitable for occasions with frequent operation.
8. Low power consumption, suitable for long-term operation.
9. High-precision counting, suitable for precise control.
II.Performance Parameter
2.1 Technical Parameters
Input power: Single phase, three wires, AC220V, 50Hz
2.2 Dimensions and Weight
Dimensions: 800mm×280mm×190mm
Weight: <50kg
III.Product component names and function introduction
3.1 Product main part
No. Name
1 Travel switch terminal
2 Intermediate relay
3 24V indicator light load
4 Emergency stop switch
5 24V output power supply
6 Self-reset button
7 Self-locking button
8 Solenoid valve coil
3.2 Product accessories
No. Name
1 Electric valve group
2 Magnetic switch
3 Roller micro switch
4 Proximity switch
5 Digital pressure sensor
6 Three-core British power plug
7 Trachea
8 Trachea scissors
9 Trachea plug
10 Straight joint
11 Pneumatic T connector joint
12 4mm electrical cable (red)
13 4mm electrical cable (black)
14 Fuse tube
15 DIN socket (3P)
16 DIN socket (4P)
IV.Product Configuration List
No. Name Quantity
1 Travel switch terminal 4
2 Intermediate relay 3
3 Self-reset button 2
4 Self-locking button 2
5 24V indicator light load 3
6 Emergency stop switch 1
7 24V output power supply 6
8 Solenoid valve coil 4
9 Electric valve group 1
10 Magnetic switch 2
11 Roller micro switch 2
12 Proximity switch 1
13 Digital pressure sensor 1
14 Three-core British power plug 2
15 Trachea 1
16 Trachea scissors 50m
17 Trachea plug 1
18 Straight joint 10
19 Pneumatic T connector joint 5
20 4mm electrical cable (red) 20
21 4mm electrical cable (black) 20
22 Fuse 5
23 DIN socket (3P) 4
24 DIN socket (4P) 4
V.Experiment List
Experiment 1 Intermediate relay test
